Cutting Dies – Tool Steel

Model TMA-CD174XXX

Tool Steel Cutting Dies are used for the cutting of plastics, paper, textiles and rubber samples. They can be used along with TMA cutting presses for the preparation of samples.

They can be used for the following Applications:

Cardboard
Foam
Paper
Plastic
Rubber

Key Features:

Able to be resharpened
Longer service life than other dies

Standards:

BS 2782-3
AS 1301.404
AS 1683.11
AS 1180.2
AS 2282.7
K6301

ASTM D412
ASTM D470
ASTM D624
ASTM D1004
ASTM 1660.2
AS/NZS 1660.2.3

ASTM D1822
ASTM D3574
ASTM D638
AS 1145
ISO 34-1
ASTM D882

ISO 37
ISO 527
ISO 1798
ISO 6259
K6251

Options:

Custom Dies – available on request
Cutting Die Adaptors
Cutting Press
Certification

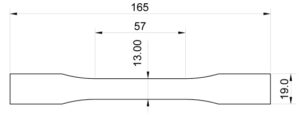

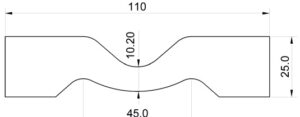

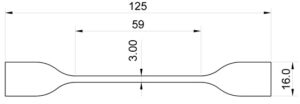

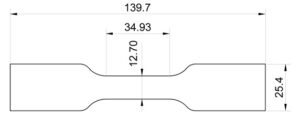

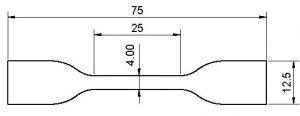

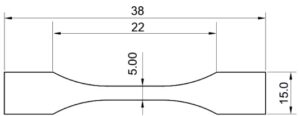

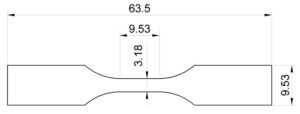

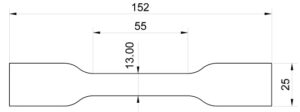

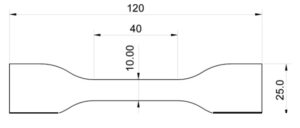

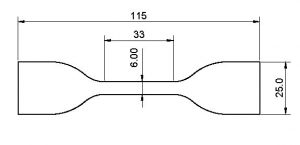

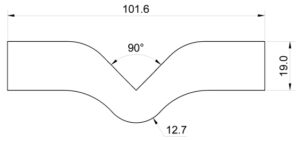

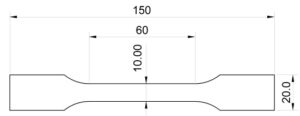

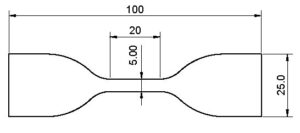

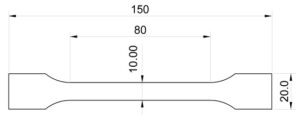

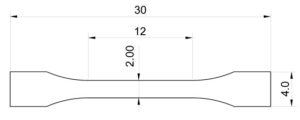

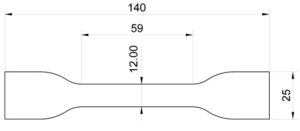

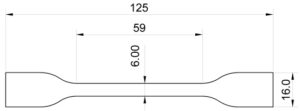

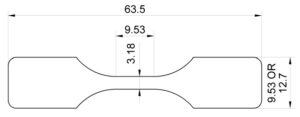

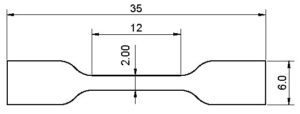

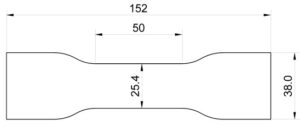

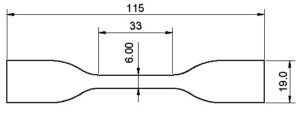

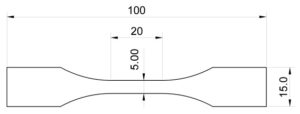

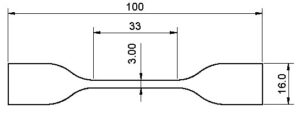

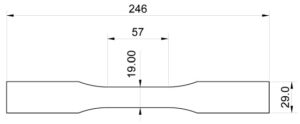

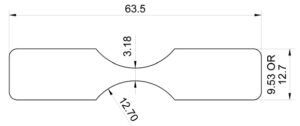

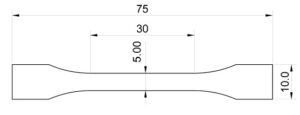

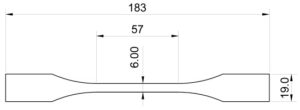

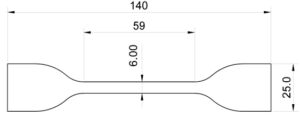

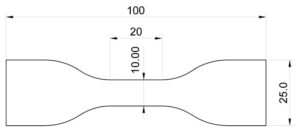

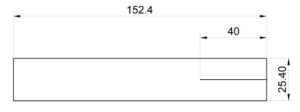

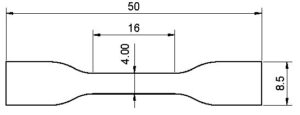

Dimensions:

All dimensions in mm

ISO 37-Type 2
ISO 527-2-Type 5A
AS 1145-Type 5A
K6251-Type 6
AS/NZS 1660.2.3
DIN53504

ASTM D412-C
ISO 6259-3-Type 2
K6251-Type 5
ISO 37 – Type 1
ISO 37-1 Type 2
ISO 527-3 – Type 5
BS 2782-3 (Method 320A)
AS 1145.3 – Type 5
DIN53504
ASTM D882

ASTM D412-D

JIS K6301-Type 3
K6251- Type 3
ISO 37 – Type 1A

ASTM D638-02a-Type 4
ASTM D6693

JIS K6301-Type 1

JIS K6301-Type 2

JIS K6301-Type 4

ISO 37 -Type 3
AS/NZS 1660.2.3
DIN 53504

ISO 37 – Type 4
ISO 527-2 – Type 5B

K6301 – B
ASTM D624 -Type C
ASTM D1004-3
DIN ISO34-1

ASTM D638-02a – Type 1

ASTM D638-02a – Type 2

ASTM D638-02a – Type 3

ASTM D638-02a – Type 5

DIN ISO 34-1
K6301-Type A
ASTM D624 – Type B

ASTM D1822 – Type L

ASTM D1822 – Type S

ASTM D3574 – Type E

ASTM D3574 – Type F
DIN ISO34-1

ISO 527-2 – Type 1A

ISO 527-2 – Type 1B
ISO 527-3 – Type 1B
BS 2782-3 (Method 320B)
BS 2782-10 – Type 1
ISO 6259-3 – Type 1

ISO 527-2 – Type 1BA

ISO 572-2 – Type 1BB

ISO 527-3 – Type 2
AS 1145.2 – Type 2

ISO 527-33 – Type 4

ASTM D412 – Type A

ASTM D412 – Type B

ASTM D412 – Type E

ASTM D412 – Type F

ISO 1798

ASTM D1708
ASTM D2116
ASTM D4894
ASTM D4895
JIS K7137-2-A
JIS K6935-2

* Other custom dies are available upon request.
